N51

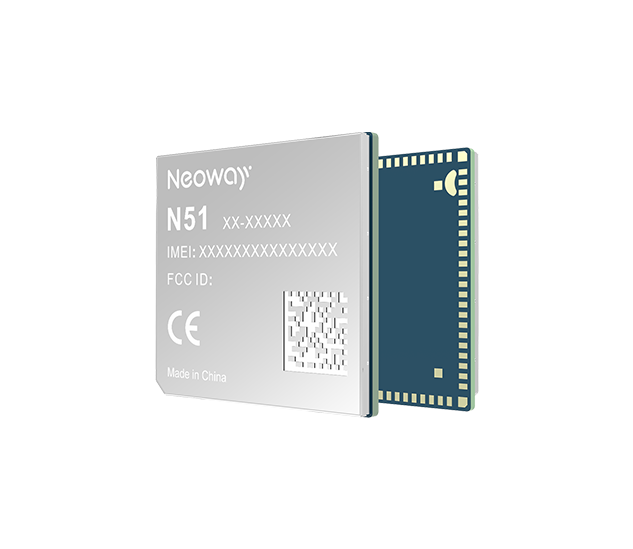

N51 is an industrial-grade 3G IoT module cellular module supports GSM and WCDMA. With an LGA package, its dimensions are only 30.0 mm x 28.0 mm x 2.5 mm. It has industrial-grade high performance and is suitable for the development of wireless meter reading terminals, industrial control, handheld POS, and other IoT equipment.

Ask a Question Document Download

Product Features

OpenCPU

eSIM optional

Pin2Pin N720 / N75

IPv4 / IPv6

-40℃ to 85℃

Specifications

Supply voltage	3.3 V to 4.3 V, Typ.: 3.8 V
Dimensions	30.0 mm x 28.0 mm x 2.8 mm
Package	100-pin LGA
Storage	Optional (ROM: 128 MB; RAM: 64 MB)
Interface	MIC x 1, SPK x 1 ADC x 1 IIC x 1 (Open) SPI x 1 (Open) UART x 1 US B2.0 PWRKEY_N RESET_N SLEEP NET_LIGHT USIM (1.8 V / 3.0 V)
Frequency bands	UMTS: B1/B2/B5/B8 GSM/GPRS: 850/900/1800/1900 Mhz
Protocol	TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
ESD	VBAT: ±8 kV / ±15 kV GND: ±8 kV / ±15 kV ANT: ±8 kV / ±15 kV Other: ±4 kV / ±8 kV
Region	Global
Certifications	CCC, SRRC, CTA, CE, RoHS, FCC, REACH, NBTC
