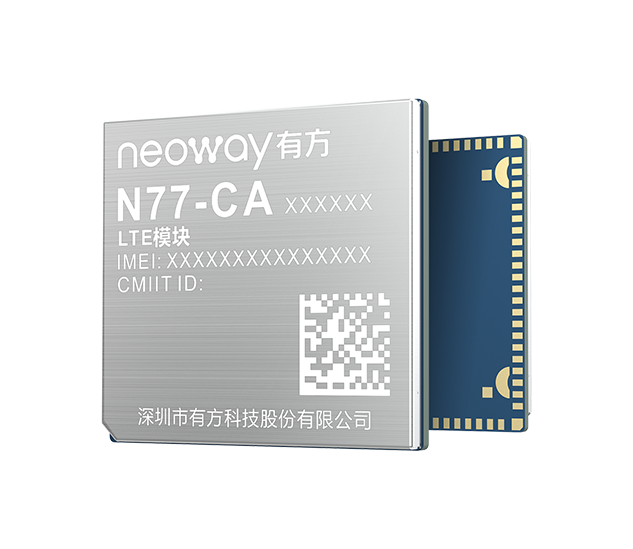

N77-CA
N77-CA is a 4G cellular module that supports all network modes with LGA package, which provides 150 Mbps downlink and 50 Mbps uplink data rates. N77 has excellent RF performance, ultra-low power consumption and an ultra-wide operating temperature range. It is an optimal option for utility, industrial router, LCD, sharing/payment products and other industry applications.
Ask a Question Document Download
Product Features
All bands
Variety interface
-40℃ to 85℃
Specifications
Supply voltage 3.4 V to 4.3 V
Dimensions 30.0 mm x 28.0 mm x 2.8 mm
Package LGA
Interface UART x 2
USB
ADC x 2
IIC x 2
SPI x 1
USIM
Frequency bands LTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
GSM/GPRS/EDGE: 900/1800 MHz
Protocol TCP/UDP/HTTP/FTP/MQTT
ESD VBAT: ±8 kV / ±15 kV
GND: ±8 kV / ±15 kV
ANT: ±8 kV / ±15 kV
Other: ±2 kV / ±4 kV
Region China
Certifications CCC, RoHS, REACH
