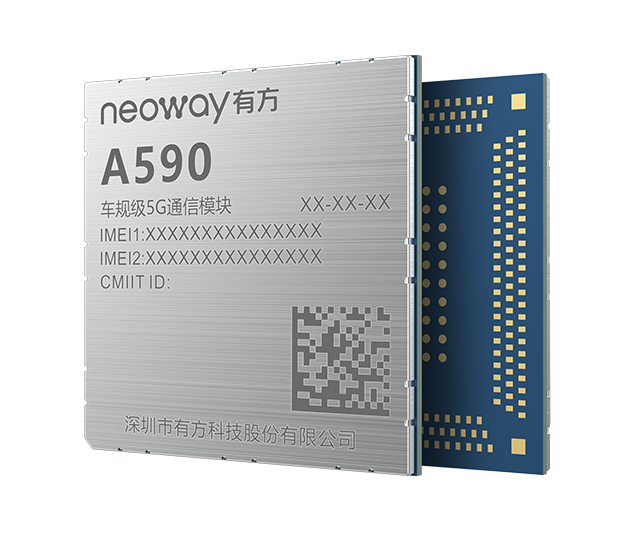

A590
A590 is a 5G V2X cellular module which is designed specially for the smart IoV industry. It supports both 5G-SA and 5G-NSA networking modes. The module has excellent RF performance and covers a wide range of frequency bands. It also supports the 4G and 3G networks and can be operated in Sub-6 GHz bands. The A590 5G V2X Cellular Module series can be used in most regions including China, Europe, Southeast Asia where 5G networks are deployed. It also supports 4G and 3G networks for application in areas not covered by 5G networks.
Ask a Question Document Download
Product Features
Sub-6G+V2X
Full-function, compact size
DSDA
IATF16949
Rich network protocols
Specifications
Supply Voltage 5G: 3.3 V to 4.3 V, typical: 3.8 V
V2X: 5 V (DC)
Dimensions 52.0 mm x 52.0 mm x 2.65 mm
Package LGA
Operating temperature -40℃ to +85℃
Interface PCIe Gen 3
USB 2.0/3.1
I2S & I2C
UART
RGMII
USIM (1.8 V/3.0 V) ×2
Frequency Bands 5G: n1/n3/n5/n7/n8/n20/n28/n39/n40/n41/n77/n78/n79;
LTE: B1/B3/B5/B7/B8/B20/B26/B28/B34/B38/B39/
B40/B41 ;
UMTS: B1/B3/B5/B8
V2X: Globle -ITS 5.9 5855-5925
Protocol RNDIS/ECM/RMNET/IPv4/IPv6
Region China/ Europe/SEA
