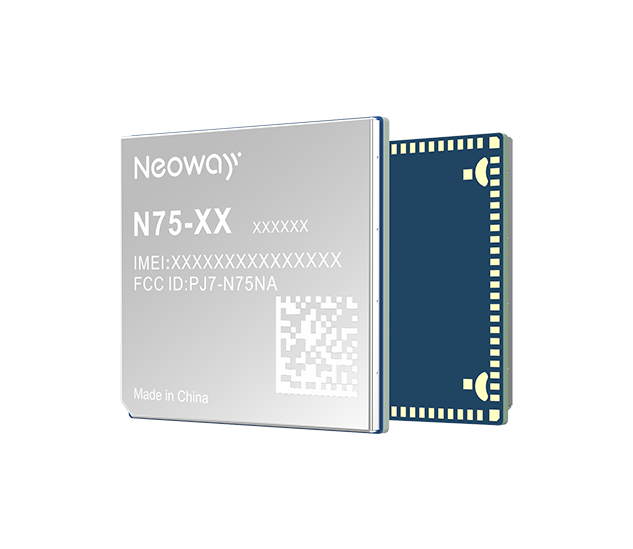

N75
N75 is an LTE Cat.4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.11 LTE technology, it provides 150 Mbps downlink and 50 Mbps uplink data rates. N75 supports location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more reliable positioning functions. With integration of network protocols, industry-standard interfaces, and abundant functions, N75 is an optimal option for energy metering, Internet of Vehicles, industrial router, video surveillance, environmental monitoring, and other industry applications.
Ask a Question Document Download
Specifications
Supply voltage 3.3 V to 4.3 V, TYP.: 3.8 V
Dimensions 30.0 mm x 28.0 mm x 2.8 mm
Package 100-pin LGA
Storage Optional (ROM: 2 Gb / 1 Gb; RAM: 1 Gb)
Interface PCM/I2S
ADC x 2
I2C x 1 (Open)
SPI x 1 (Open)
UART x 2
USB 2.0
PWRKEY_N
RESET_N
DTR (sleep mode control)
NET_LIGHT
USIM (1.8 V / 3.0 V)
SGMII (Open)
SDIO 3.0 (Open)
SD Card (Open)
GNSS GPS/BDS/GLONASS
Frequency NA:
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B66/B71
UMTS: B2/B4/B5
GPRS|EDGE: B2/B5

EA (EMEA/SEA):
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40
UMTS: B1/B5/B8
GSM|GPRS: 900/1800 MHz

LA:
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B10/B28/B66
LTE TDD: B38/B40/B41
UMTS: B1/B2/B4/B5/B8
GSM/GPRS: 850/900/1800/1900 MHz
Protocol TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
ESD VBAT: ±8 kV / ±15 kV
GND: ±8 kV / ±15 kV
ANT: ±8 kV / ±15 kV
Other: ±4 kV / ±8 kV
Region North America
Certifications CE, RoHS, FCC, IC, NCC, REACH, ICASA, RCM, Verizon*, NBTC*, PTCRB, GCF, AT&T, T-Mobile, Anatel
