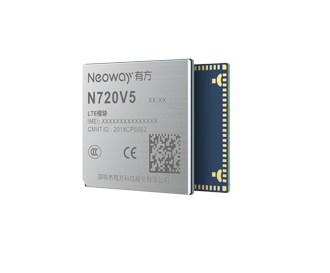

N720V5
N720V5 is the 4G module that supports all network modes. It has stable performance. The module's dimensions are 30.0 mm x 28.0 mm x 2.8 mm. It can work on the 2G, 3G, and 4G networks of all Chinese carriers and is applicable to wireless meter reading, industrial routers, and other IoT equipment.
Ask a Question Document Download
Product Features
4G LTE
LGA
USB
-40℃~85℃
Specifications
Supply voltage 3.3 V~4.3 V; Typical: 3.8 V
Dimensions 30.0 mm x 28.0 mm x 2.8 mm
Package 100-pin LGA
Interface UART x 1
USB 2.0
SLEEP
NET_LIGHT
ADC x 1
PWRKEY_N
RESET_N
USIM (1.8 V/3.0 V)
Frequency bands LTE FDD: B1/B3/B5/B8;
LTE TDD: B34/B38/B39/B40/B41;
UMTS: B1/B5/B8;
GSM: 900/1800 MHz
Protocol TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
Region China
Certifications CCC, SRRC, CTA, CE, RoHS, FCC, REACH
