N706

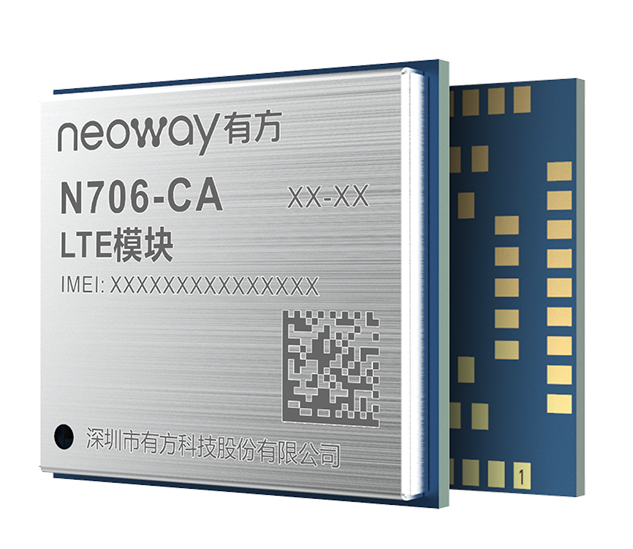

N706 module is an ultra-small size LTE Cat.1 wireless communication module, the size is only 17.7mm × 15.8mm × 2.3mm, supporting FDD-LTE, TDD-LTE communication. With a rich hardware interface, support Wi-Fi, RX beacon positioning and GNSS functions, suitable for the development of wireless meter terminals, POS, industrial routers and other Internet of Things communication equipment.

Ask a Question Document Download

Product Features

Ultra small size

Expandable internal storage

-40℃～85℃

Positioning (optional)

Specifications

Supply Voltage	3.4 V~4.2 V; Typical: 3.8 V
Dimensions	15.817.72.3 mm
Storage	ROM+RAM: 64 Mb+128 Mb
Interface	PCM/I2S ADC x 2 I2C x 1 SPI x 2 UART x 2 USB 2.0 PWRKEY_N RESET_N PSM_WAKEUP NET_LIGHT USIM (1.8 V/3.0 V) x 2
GNSS	GPS/BDS
Frequency Bands	LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B39/B40/B41;
Protocol	TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
ESD	VBAT: ±8 kV/±15 kV GND: ±8 kV/±15 kV ANT: ±8 kV/±15 kV Other: ±4 kV/±8 kV
Certifications	CCC/SRRC/CTA*
